Einzelheiten zu den Produkten

Zu Hause > Produits >

Li Polymer Battery

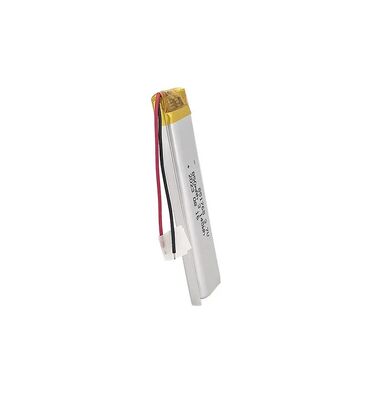

High Capacity 3.7V 850mAh 500times Cycle Life Lithium Polymer Rechargeable Battery 851768 1S1P

Alle Kategorien

wieder aufladbare Lithium-Batterien

Tragbares Kraftwerk

Kontakt mit uns

Mrs. Linda

linda@szgpebattery.com

+86 15817210994

Kontaktieren Sie uns jetzt

High Capacity 3.7V 850mAh 500times Cycle Life Lithium Polymer Rechargeable Battery 851768 1S1P

Modellnummer:	LP851768
Mindestbestellmenge:	2000 Pieces
Verpackungsdetails:	Massenverpackung
Zahlungsbedingungen:	T/T

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

KC,UN38.3, MSDS, IEC62133, RoHS

Akku-Typ:

Lithium-Polymer-Akkupackung

Stromspannung:

Kapazität:

380mah

Zyklusleben:

500 Times

Gewicht:

Mindestbestellmenge:

2000 Stück

Garantie:

1 Jahr

Vorlaufzeit:

15-20 Tage

Anwendung:

Haushaltsgeräte, Unterhaltungselektronik

Größe:

8.5*17*68mm

Versorgungsmaterial-Fähigkeit:

50'000 Stück täglich

Beschreibung des Produkts

High Capacity 851768 3.7V 850mAh 1S1P Lithium Ion Polymer Battery

This customized rechargeable lithium polymer battery offers high capacity performance with 500+ charge cycles, designed for reliable power applications.

Product Specifications

Mechanical Characteristics

Cell	851768	PCM	Yes
NTC	No	Weight	Approx. 17g
Configuration	1S1P

Electrical Specification

Capacity	850mAh	Nominal Voltage	3.7V
Energy	1.776Wh	Internal Impedance	< 180mΩ
Max. Charge Voltage	4.2V	Discharge Cut Off	2.75V
Max. Charge Current	850mA	Max. Discharge Current	850mA
Standard Charge Current	170mA	Standard Discharge Current	170mA
Charge Temp. Range	10°C to 45°C	Discharge Temp. Range	-20°C to 60°C

Storage Temperature Range

1 year	-20℃ to +30℃
3 months	-20℃ to +45℃
1 month	-20℃ to +60℃

Cycle Life Performance

100 cycles	≥92% capacity retention
300 cycles	≥88% capacity retention
500 cycles	≥80% capacity retention

Cell Protection Features

Overcharge Detection	4.28 ±25mV (1-1.6sec delay, release 4.2V ±50mV)
Overdischarge Detection	2.5V ±50mV (115-175msec delay, release 3.0V ±50mV)
Overcurrent Detection	2.5A to 4.0A (9-15msec delay)
Short Protection	Yes

Safety Precautions

Keep batteries away from children to prevent swallowing hazards
Read all guides carefully before use, charging, or installation
Use batteries only during their operational lifespan
Remove batteries when their life cycle is complete
Store unused batteries in cool, low-humidity environments
Clean battery connections with dry cloth before use if dirty
Avoid electrostatic environments during use and charging
Operate within specified temperature ranges: Charge 0ºC~45ºC, Discharge -20ºC~55ºC

Product Images

Usage Guidelines

Important Safety Notes:

Avoid high temperature environments to prevent overheating and performance degradation
Do not use in areas with high static electricity to protect safety devices
If electrolyte contacts eyes, rinse immediately with clean water and seek medical attention
Discontinue use if battery emits odor, generates heat, discolors, or appears abnormal
Tape terminals to insulate discharged batteries to prevent fire hazards
Store at room temperature, charged to 40-60% capacity
Charge every 3 months during storage to maintain battery health

Additional Battery Models

Shenzhen Gold Power Energy offers over 1000 lithium polymer battery models with capacities ranging from 20mAh to 5000mAh to meet diverse application requirements.

Manufacturer Information

Shenzhen Gold Power Energy Co., Ltd. has been a leading battery supplier since 2001, specializing in Li polymer batteries, Lithium ion batteries, LiFePO4 batteries, and customized battery packs.
